Choosing an encapsulated O-ring

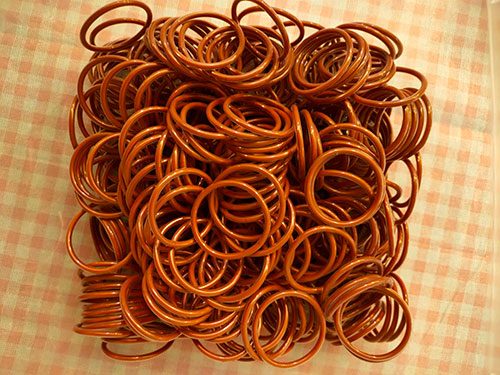

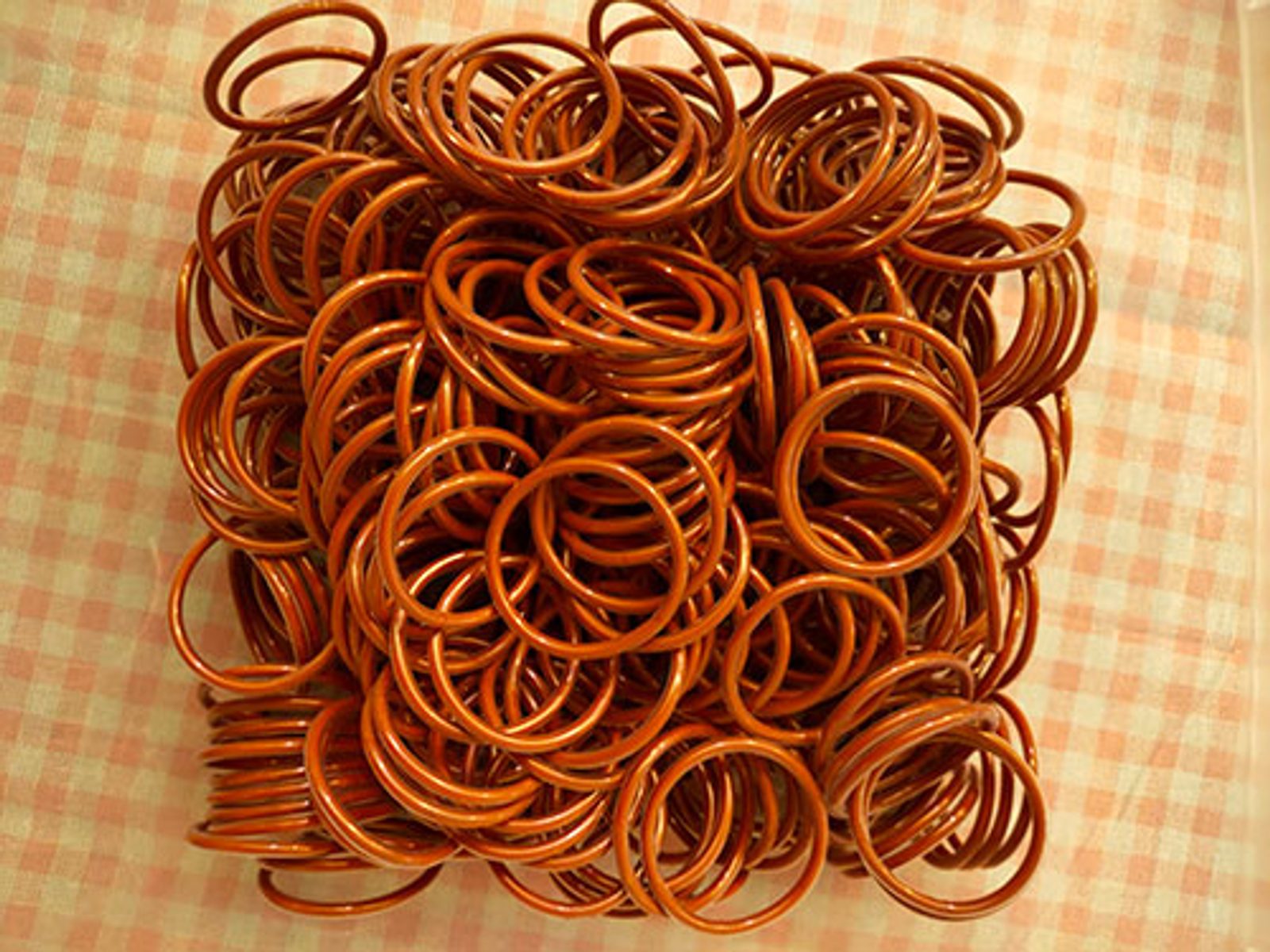

An encapsulated O-ring combines an elastomer core with a protective jacket. Start a replacement enquiry with the equipment specification and existing part designation, then confirm the jacket, core and dimensions.
Looking for a replacement? View AKVT’s encapsulated O-ring product page for dimension guidance and quotation details.
FEP, PFA and core construction
Freudenberg describes FEP/PFA jackets around FKM or silicone cores, including hollow-core designs. These constructions are different from solid PTFE rings. Confirm the actual offered specification; a manufacturer’s range does not establish AKVT availability. Freudenberg: construction reference.
Check the application before ordering
For a static housing or flange, provide medium, concentration, temperature, pressure or vacuum and the groove drawing. Ask for the complete assembly’s suitability to be reviewed, especially if the process includes cleaning cycles or changing media.
For moving service, consult the selected manufacturer: ERIKS recommends static use of its encapsulated rings and calls for suitability testing in dynamic applications. Do not assume that a low-friction jacket makes an encapsulated ring a suitable shaft seal. ERIKS: application and installation guidance.
Dimensions and supporting documents
Send inside diameter × cross-section with units, the original drawing and jacket/core codes if known. Label measurements from an old sample, particularly if it is distorted. Use how to measure an O-ring to prepare the dimensional information.
If your process requires food-contact or other compliance, request a declaration for the exact supplied construction. This article does not certify an unidentified part or provide a universal temperature rating.
Request a quotation
Include quantity, operating conditions, required documents, delivery postcode and required date. Review the encapsulated O-ring product or contact AKVT to confirm specification and availability.
