Precision Metal Components

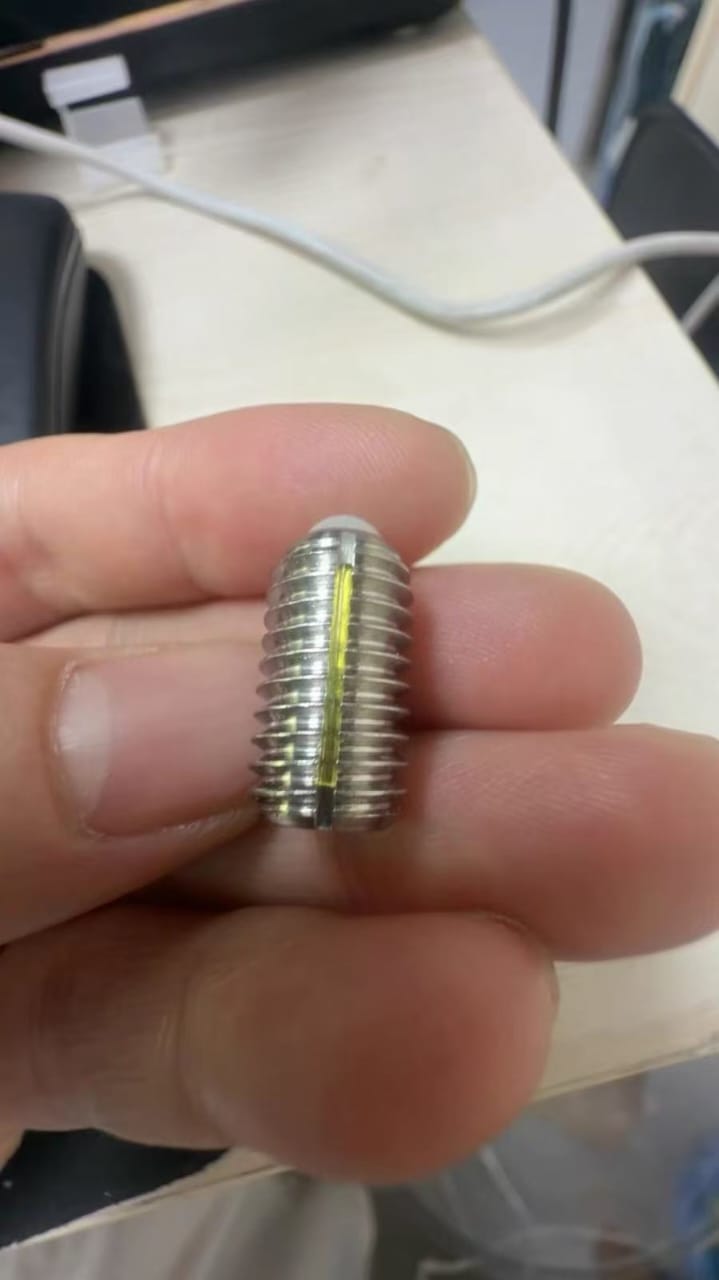

Custom SS304 Ball Plunger Screw
Quotation-led custom SS304 threaded ball plunger screw for compact positioning, locating and detent applications, reviewed against a supplied sample or requirement.
- Component type: Custom threaded ball plunger screw
- Body material: SS304 stainless steel, subject to final specification confirmation

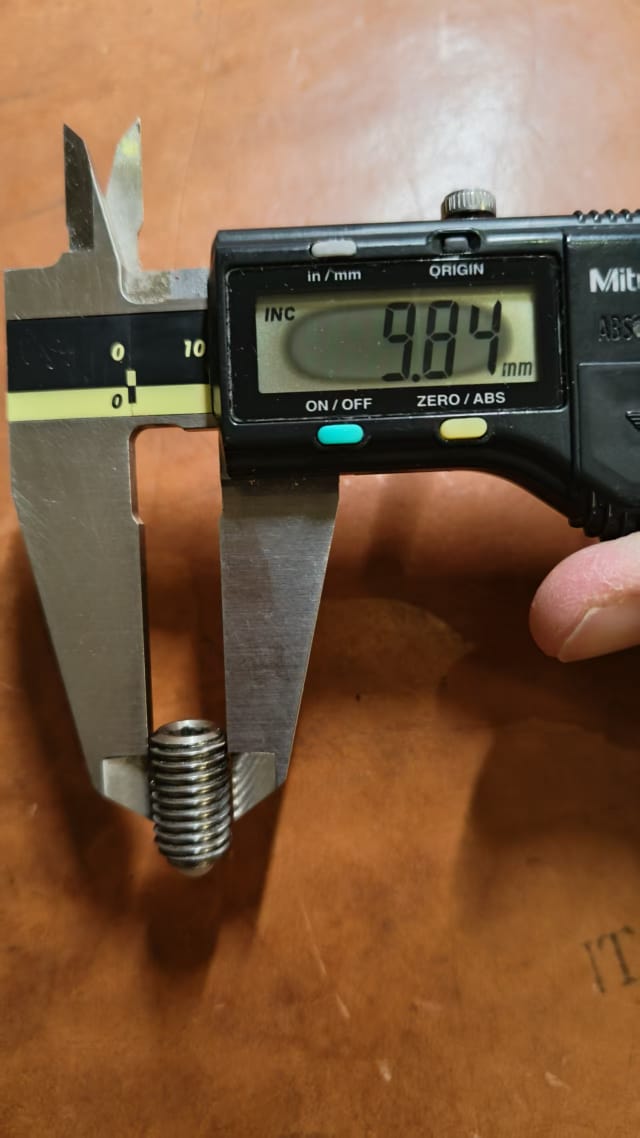

- Reference diameter: Approximately 9.84 mm on the supplied sample

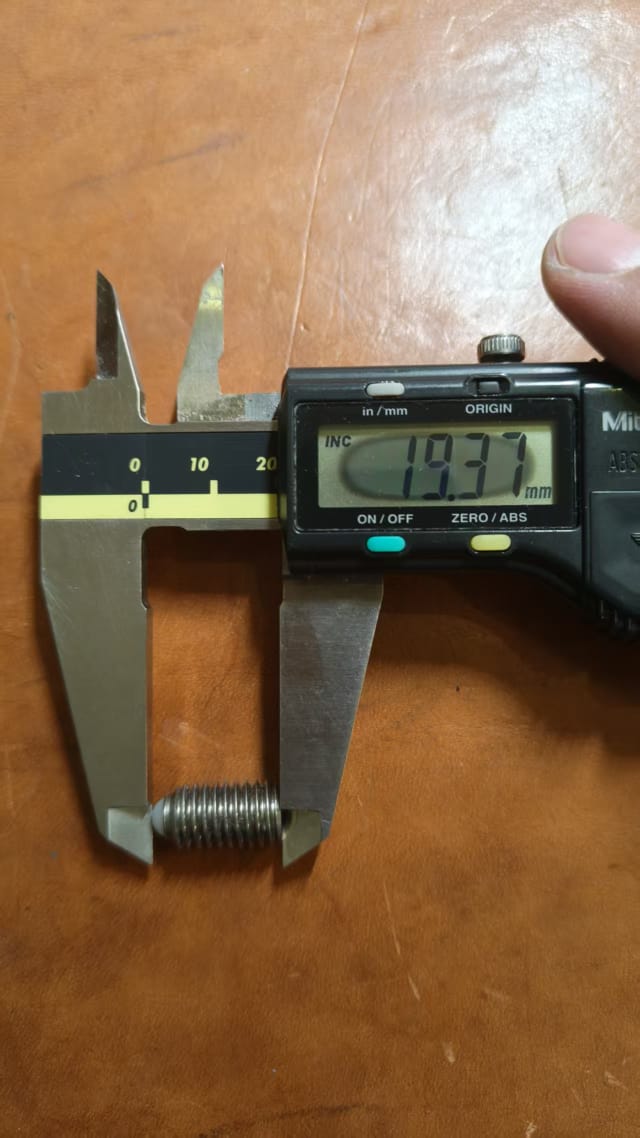

- Reference length: Approximately 19.37 mm on the supplied sample

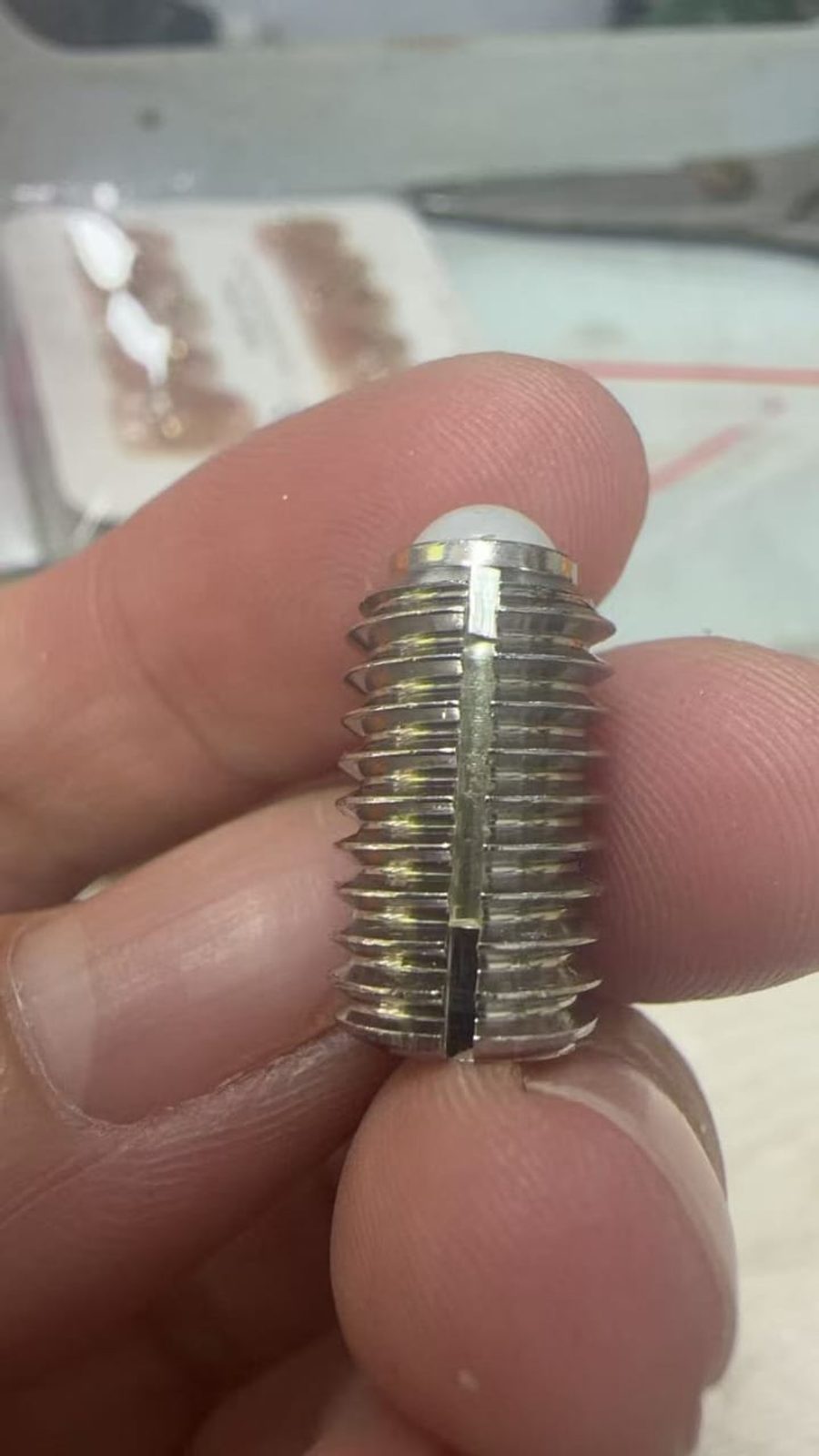

- Ball tip: White polymer ball; exact material to be confirmed

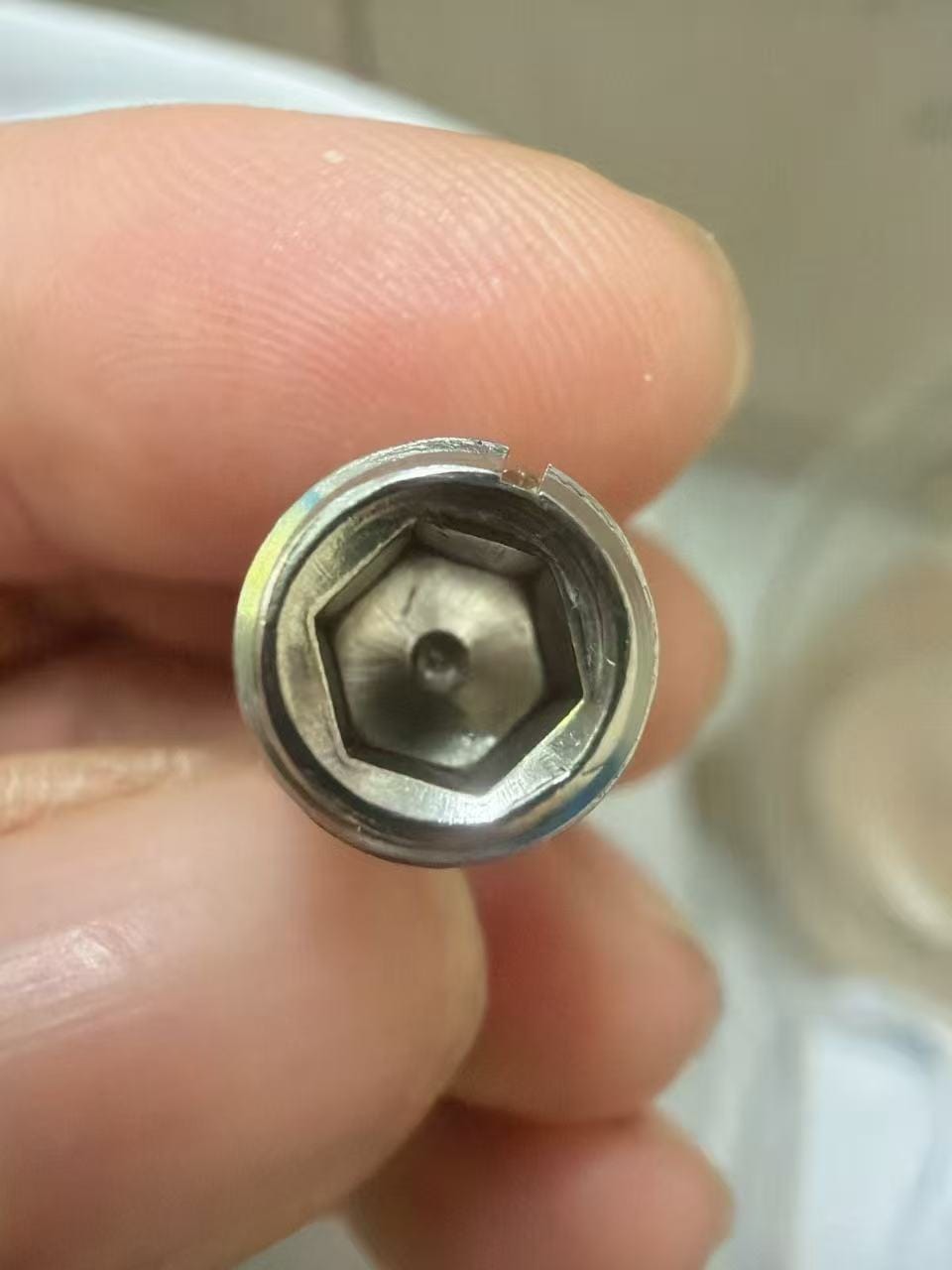

- Drive and construction: Internal hex with slotted threaded body
- Quotation requirements: Confirm thread, spring load, travel, tolerances, quantity and operating conditions
Product information
Overview
This custom threaded ball plunger combines a compact stainless-steel body, a spring-loaded polymer ball tip and an internal-hex drive. It can be reviewed for positioning, locating, detent, stop and light thrust applications where an off-the-shelf configuration does not match the required geometry.
The photographed reference sample measures approximately 9.84 mm across the threaded body and 19.37 mm in overall length. These are indicative sample readings rather than final manufacturing dimensions. Thread form and pitch, ball material, spring material, spring load, travel, tolerances, quantity and application conditions must be confirmed during quotation.
