White FKM O-Ring Supplier in Malaysia

Enquire about white FKM O-rings from AKVT in Penang, serving customers across Malaysia. Send your inside diameter, cross-section, quantity and operating conditions so we can review the required compound and size.

Material: White FKM / fluoroelastomer
Size enquiry: Inside diameter × cross-section, with units
Compound selection: Confirm grade, hardness and service limits for the application

Request an FKM O-Ring Quote General enquiry

Application reviewWe confirm size, material and duty requirements.

Custom optionsAsk about custom dimensions, grades and quantities.

Malaysia supportResponsive product guidance from Penang.

Product information

Overview

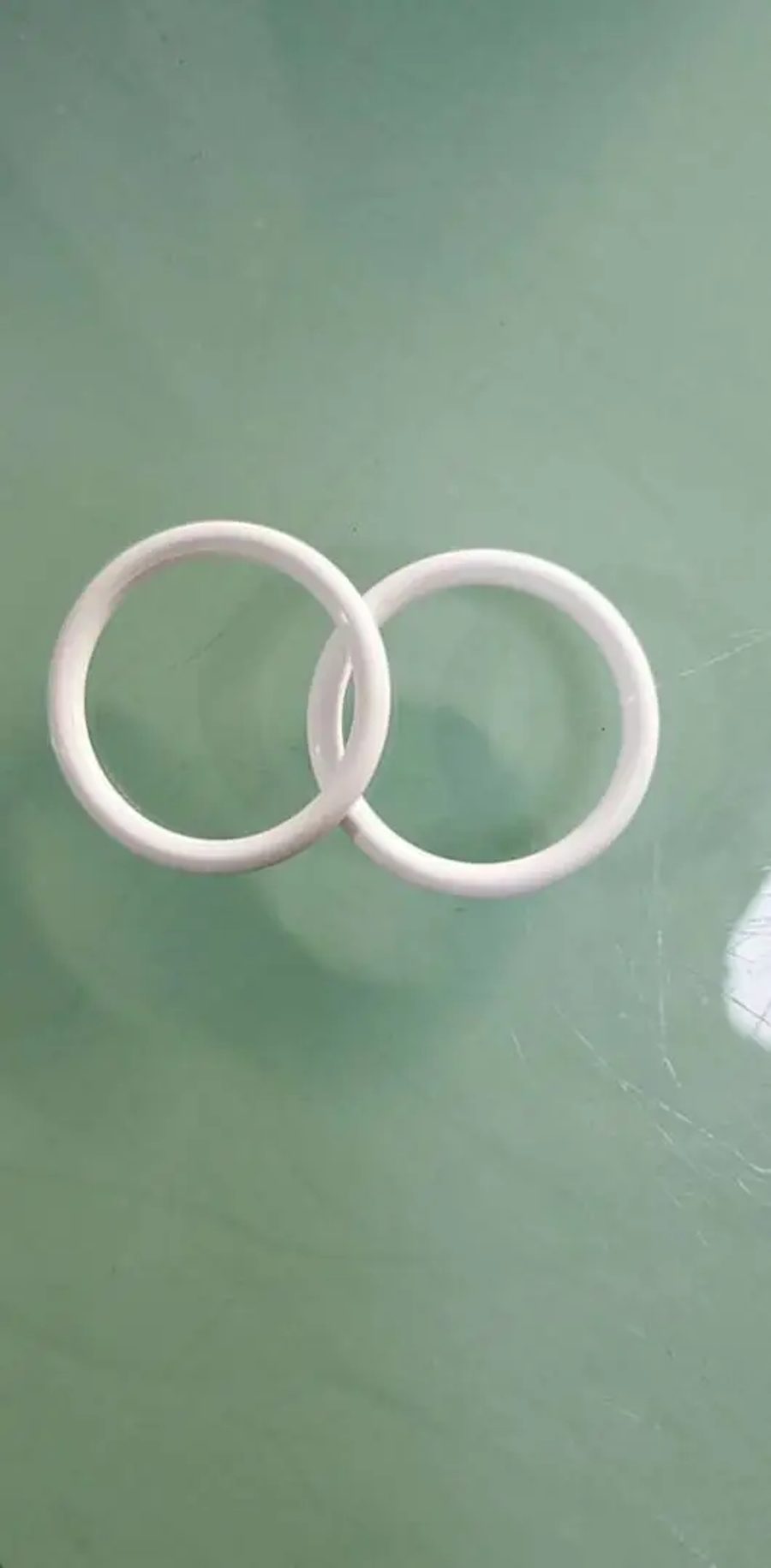

White FKM: identify the compound as well as the colour

AKVT’s listed product is a white FKM O-ring. FKM identifies the elastomer family; the exact compound determines properties such as hardness and service limits. Parker’s handbook lists multiple FKM compounds with different specifications. A general FKM rating should not be treated as the rating of this particular white formulation. Parker O-Ring Handbook.

For your quotation, ask AKVT to confirm the supplier’s compound designation, hardness, dimensions and application suitability. Colour alone does not identify the grade.

Product details for your enquiry

Detail	Product information and quotation requirement
Product	White FKM O-ring
Material family	FKM / fluoroelastomer
Compound and hardness	Confirm the supplier compound code and Shore A hardness with your quotation
Dimensions	Specify inside diameter × cross-section, with units and tolerances or a drawing
Temperature and pressure	Provide continuous and peak conditions for review against the selected part
Food-contact requirements	Specify the required documentation and conditions of use

How to specify O-ring dimensions

Use inside diameter (ID) and cross-section (CS) to describe the size. Measure a relaxed sample without stretching or compressing it, and include a drawing or original part number where possible. Parker O-Ring Handbook: dimensions and ordering.

Measurement	Meaning	Example only
ID	Diameter of the opening inside the ring	20 mm
CS	Thickness of the circular rubber section	3 mm
OD	Outside diameter: ID + 2 × CS	26 mm

Example enquiry: “White FKM O-ring, 20 mm ID × 3 mm CS, 100 pieces; compound and hardness to be confirmed.” These numbers illustrate the ordering format, not a stocked AKVT size or a recommended fit.

A worn or distorted sample may not show its original dimensions. Include the equipment drawing, groove dimensions or original specification when available.

Application examples to discuss with AKVT

General FKM material guidance includes oil and fuel service, subject to the selected compound and actual medium. Parker: fluorocarbon O-ring material guidance.

For a pump cover replacement, send the original seal specification and fluid details. For an equipment maintenance enquiry, include the operating and cleaning temperatures. For a process connection, identify the chemical, concentration and exposure conditions. These examples are starting points for review; suitability must be established for the quoted white compound.

Selection FAQs

Is every white FKM O-ring food grade?

No. Request documentation for the specific compound and intended conditions of use. Parker’s food-industry materials brochure distinguishes individual compounds and their compliance information; a colour or polymer-family label does not replace that documentation. Parker: Materials for the Chemical Process and Food Industries.

What is the operating temperature of this white FKM grade?

Ask AKVT to confirm the range against the supplier’s compound datasheet. Include continuous temperature, short excursions and the fluid involved. A numerical rating is not provided here without that product-specific evidence.

Will FKM work with every chemical?

No. Select against the actual fluid and operating conditions. Parker’s material selector includes fluid compatibility, temperature and hardness inputs. Share cleaning agents as well as the process fluid. Parker O-Ring Selector.

What if I only know the old part number?

Send it with the equipment model and quantity. Add photographs or a drawing by email if available, and state whether the replacement must meet a particular material specification.

Request a white FKM O-ring quotation

Include ID × CS and units, quantity, material or compound reference if known, medium, pressure, temperature, required documentation, delivery location and required date.

Request an FKM O-Ring Quote

Browse the O-ring range or discuss an encapsulated O-ring as a separate product option. Selection depends on your application.
