Sealing Solutions

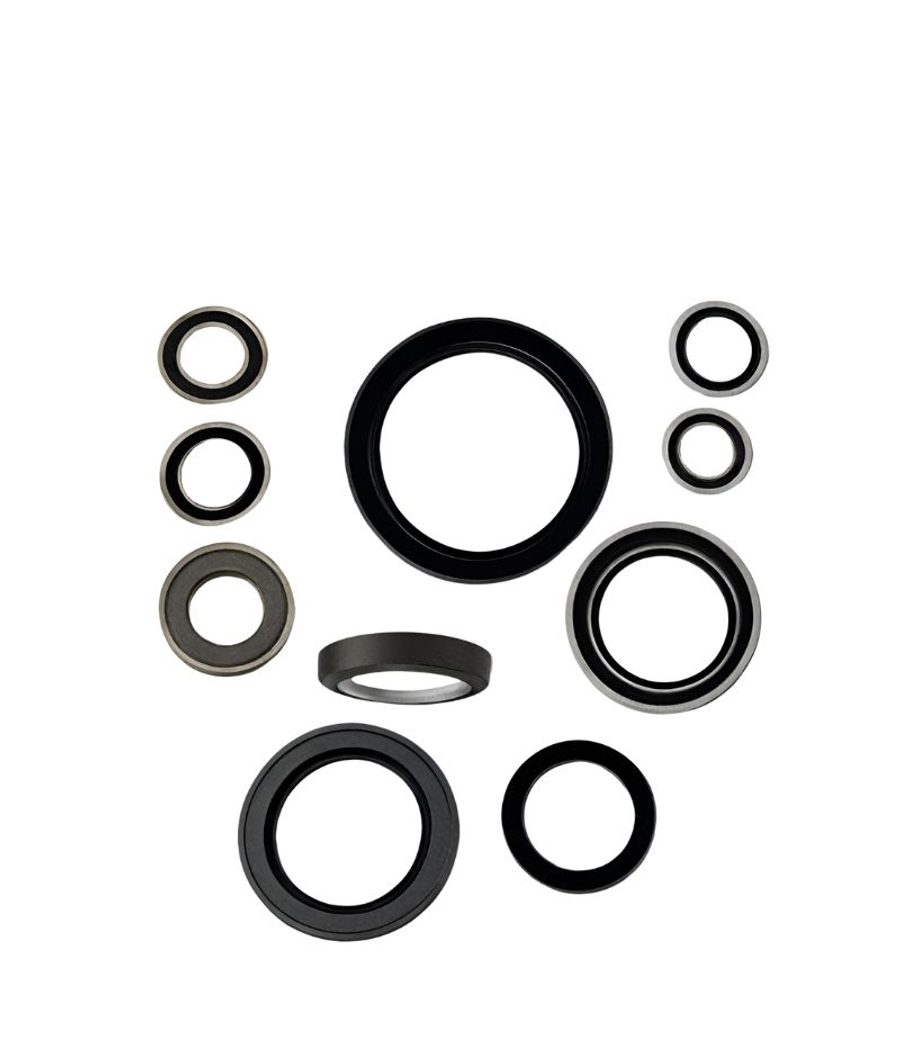

Bonded Seal Supplier in Malaysia
Looking for a bonded seal for a hydraulic fitting or industrial connection? AKVT provides product guidance from Penang for customers in Malaysia. Send your required size, quantity and operating conditions for review. Enquire about the listed metric and imperial sizes, and confirm material and availability when requesting a quotation.
Application reviewWe confirm size, material and duty requirements.
Custom optionsAsk about custom dimensions, grades and quantities.
Malaysia supportResponsive product guidance from Penang.
Product information
Overview
What is a bonded seal?
A bonded seal combines a metal ring with a bonded rubber sealing element. It is used for static sealing in suitable threaded connections and flange joints. The metal ring supports the assembly while the elastomer provides the sealing interface. Trelleborg: Bonded Seal.
Bonded seals may also be described as bonded sealing washers. Match the replacement to the connection design and dimensions, rather than selecting by name alone.
Metric and imperial size enquiries
The following designations appear in AKVT’s existing product listing:
| Size group | Listed designations |
|---|---|
| Imperial | 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 3/4, 2 |
| Metric | M6-12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M60 |
For size availability and application requirements, request a quotation. AKVT product listing.
To identify a replacement, provide the fitting or thread designation, part number, drawing and measured dimensions where available.
Applications and material selection
Bonded sealing washers are used in suitable static flange and screw-head sealing applications. Manufacturer catalogues include different metal carriers and elastomer compounds, including NBR and FKM. The correct combination depends on the connection and operating conditions. Parker: Composite Sealing Washers.
Tell us the fluid or gas, operating temperature, pressure and connection details. Material options and performance ratings must be confirmed for the specific part being quoted.
What to include in your quotation request
| Information | Details to send |
|---|---|
| Size | Listed designation, fitting/thread details, or part number |
| Dimensions | Drawing or measured internal diameter, external diameter and thickness, if available |
| Application | Equipment and connection where the seal will be used |
| Operating conditions | Fluid or gas, temperature and pressure |
| Material | Required rubber and metal specification, if known |
| Order details | Quantity, delivery location and required date |
Not sure which size you need? Share the information you have so AKVT can review the next step.
Frequently asked questions
Can I choose a bonded seal from the thread size alone?
Use the thread designation as a starting point. Confirm the seal dimensions and connection requirements against the relevant drawing or part specification before ordering.
Are all bonded seals self-centering?
No. Self-centering versions are specific designs within manufacturer ranges. Identify the required design when replacing an existing seal. Trelleborg: Bonded Seal.
What pressure and temperature can a bonded seal withstand?
There is no single rating for every bonded seal. Manufacturer specifications depend on the design and material. Ask for the limits of the exact part being supplied. Parker: Composite Sealing Washers.
Can I request a size that is not listed?
Yes—send the required dimensions, material and quantity for review. AKVT will need to confirm whether it can supply the requested specification.
Explore hydraulic seals and other sealing solutions.
