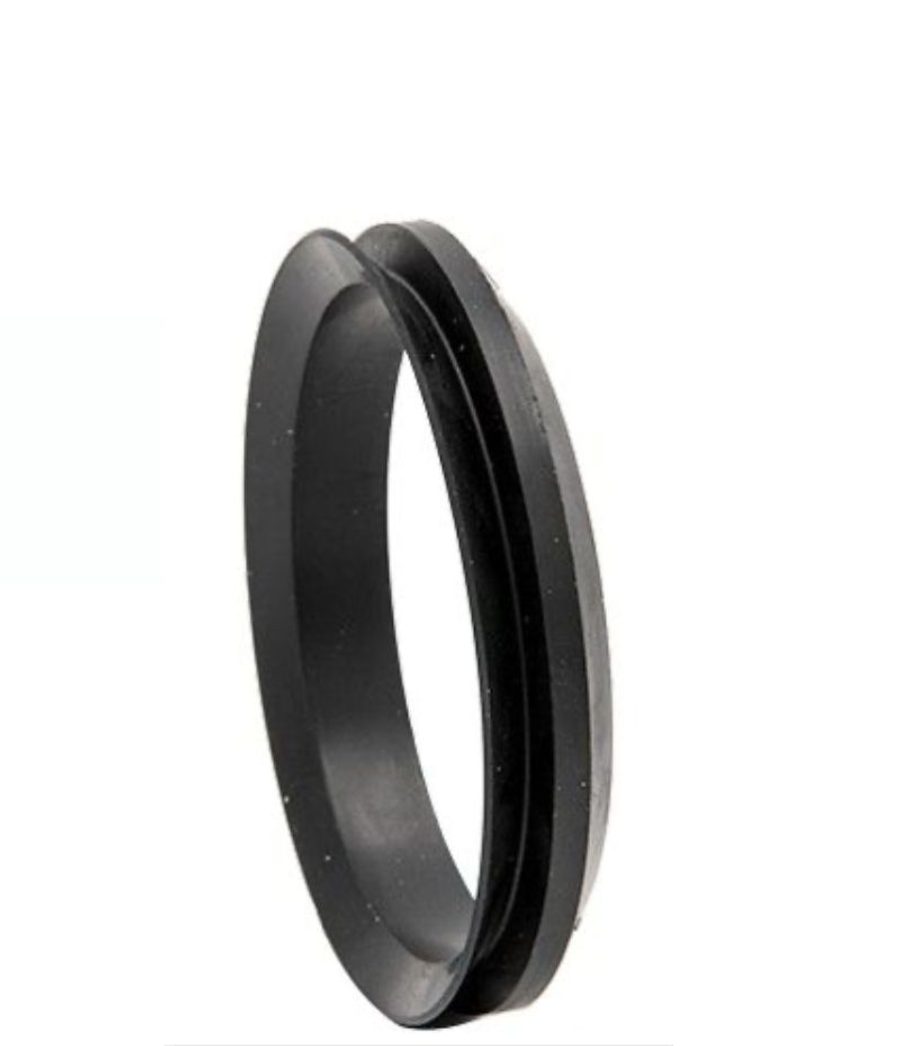

V-Ring Seal Supplier in Malaysia

Enquire about V-ring seals from AKVT for rotating-shaft applications. Our current listing describes the VA profile. Send the shaft diameter, existing seal designation, operating speed and installation details for size and material review.

Seal type: Axial shaft seal
Listed profile: VA; confirm required size and material
Size enquiry: Shaft diameter, profile and fitted dimensions

Request a V-Ring Quote General enquiry

Application reviewWe confirm size, material and duty requirements.

Custom optionsAsk about custom dimensions, grades and quantities.

Malaysia supportResponsive product guidance from Penang.

Product information

Overview

How a V-ring seals

A V-ring fits on a shaft and seals axially against a counterface. This differs from a radial seal lip running on the cylindrical shaft surface. Trelleborg describes counterfaces such as a shaft collar, thrust washer or bearing face. Trelleborg: Forsheda V-Ring.

VA, VS and VL profiles

The following comparison explains common profile names. AKVT’s current product listing describes VA; enquire about supply of any other profile and the exact size required.

Profile	General design	AKVT enquiry guidance
VA	Standard cross-section with a straight back face	Profile described in this product listing; confirm size and material
VS	Wider body with a tapered back face	Ask whether the required profile can be supplied
VL	Compact axial section for restricted space	Provide the available axial space and ask about supply

The profile descriptions follow SKF’s V-ring guidance. They are not interchangeable size specifications or a statement of AKVT stock. SKF CR Seals Handbook: V-ring designs.

Select by shaft diameter and fitted dimensions

Identify the shaft diameter first, then match it to the exact manufacturer’s shaft-range table. A V-ring’s free-state inside diameter is a different dimension from the shaft diameter. Also check the fitted axial width, counterface and clearance dimensions. SKF: V-ring dimensional table.

Dimension or detail	What to provide
Shaft diameter	Actual diameter and units at the mounting location
Profile / part number	Existing VA, VS, VL or manufacturer designation, if known
Fitted axial width	Installed width or assembly drawing; distinguish it from loose-seal width
Counterface and clearance	Drawing or dimensions of the surface contacted by the lip and surrounding space
Material and duty	Existing material, speed, temperature, contaminants and any pressure difference

Example enquiry: “V-ring for a 30 mm shaft; existing VA designation to be confirmed; 1,500 rpm; assembly drawing attached.” This is an enquiry example, not confirmation that a particular V-ring size fits that application or is stocked.

Where the shaft diameter falls at a catalogue range boundary, follow that manufacturer’s table and selection notes. Do not transfer a nominal size or boundary rule between manufacturers without checking the drawing.

Application examples

SKF describes VA use in bearing arrangements such as electric motors, gearboxes and drives, and compact VL profiles for restricted spaces around labyrinth seals. SKF CR Seals Handbook.

For a motor-maintenance enquiry, send the shaft diameter and existing seal marking. For a gearbox, include the arrangement drawing and contamination exposure. If space is restricted, provide the available installation envelope before choosing a profile. AKVT can review the details needed for a quotation.

Selection FAQs

Can I order using only the inside diameter of the loose V-ring?

Provide the actual shaft diameter and existing part designation too. Manufacturer tables distinguish shaft range from free-state seal diameter, so these measurements should not be substituted for each other. SKF: V-ring dimensional table.

Can VA, VS and VL be substituted directly?

Do not assume a direct substitution. Confirm the profile, fitted width and counterface requirements against the assembly drawing and the proposed part specification.

Which material and speed rating should I choose?

Include shaft speed, temperature and exposure conditions in the enquiry. Manufacturer limits can depend on material and retention arrangements. Confirm these against the exact supplied part; a single speed or temperature rating is not assigned to every V-ring. Trelleborg Rotary Seals Catalogue: V-ring guidance.

Can a V-ring replace my pressure-retaining seal?

Do not assume that it can. Include any pressure difference and the existing seal arrangement for review. Trelleborg’s catalogue identifies the standard V-ring family as operating without pressure; another sealing arrangement may be required. Trelleborg Rotary Seals Catalogue.

Request a V-ring quotation

Send the shaft diameter, profile or part number, quantity, material if known, operating speed, temperature, contamination exposure and installation drawing. Include your delivery location and required date.

Request a V-Ring Quote

See the sealing solutions range and oil seal category when discussing the complete shaft-sealing arrangement.
