A ball plunger is a compact spring-loaded component used to create controlled contact for positioning, locating, detent, stop or light thrust functions. This custom sample was supplied for review where a standard catalogue configuration may not match the required size or construction.

A compact custom configuration

The sample combines a threaded SS304 body, a white polymer ball tip, an internal-hex drive and a longitudinal slot in the body. The exact ball and spring materials remain part of the final technical confirmation. The spring-loaded tip moves under pressure and returns when the load is removed.

Spring-action demonstration of the custom ball plunger sample.

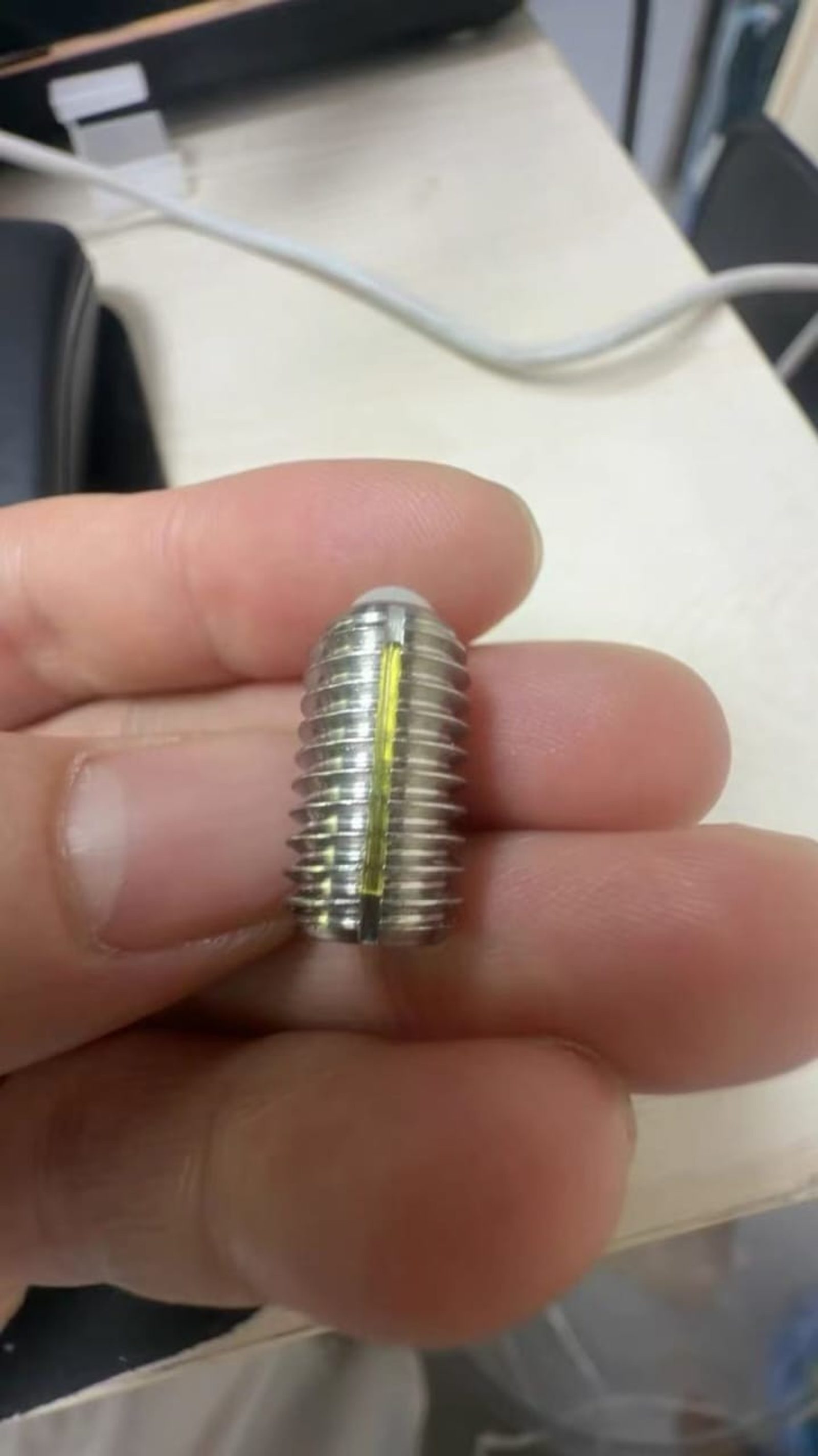

Side view of a compact custom SS304 ball plunger screw
The threaded body, projecting ball tip and longitudinal slot can be reviewed from the side.

Indicative sample measurements

Caliper readings in the supplied photographs show approximately 19.37 mm overall length and 9.84 mm across the threaded body. These readings document the physical sample for initial review; they are not a released drawing, thread specification or manufacturing tolerance.

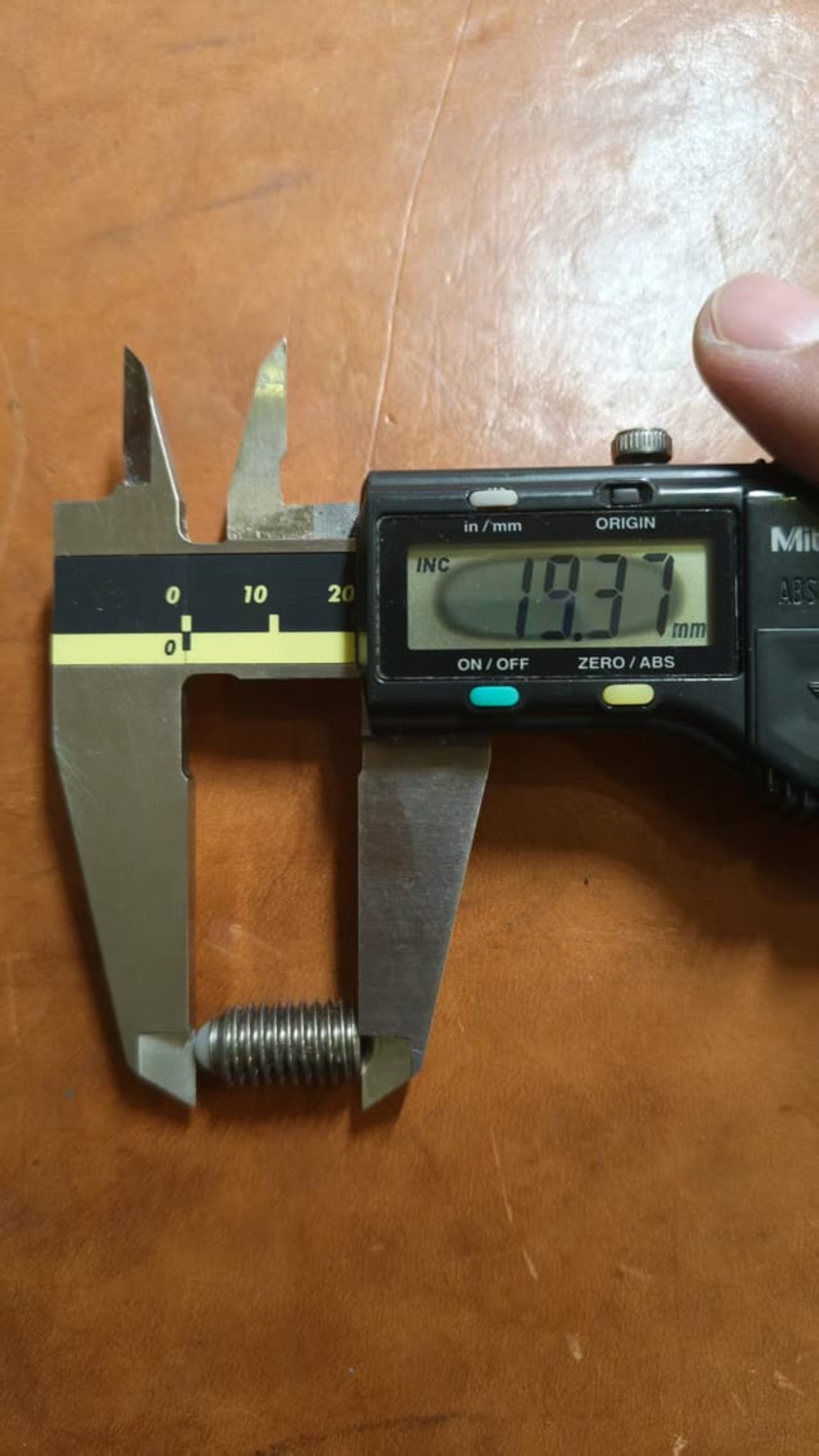

Caliper showing an approximate 19.37 millimetre length for the sample
Indicative overall-length reading from the supplied sample.

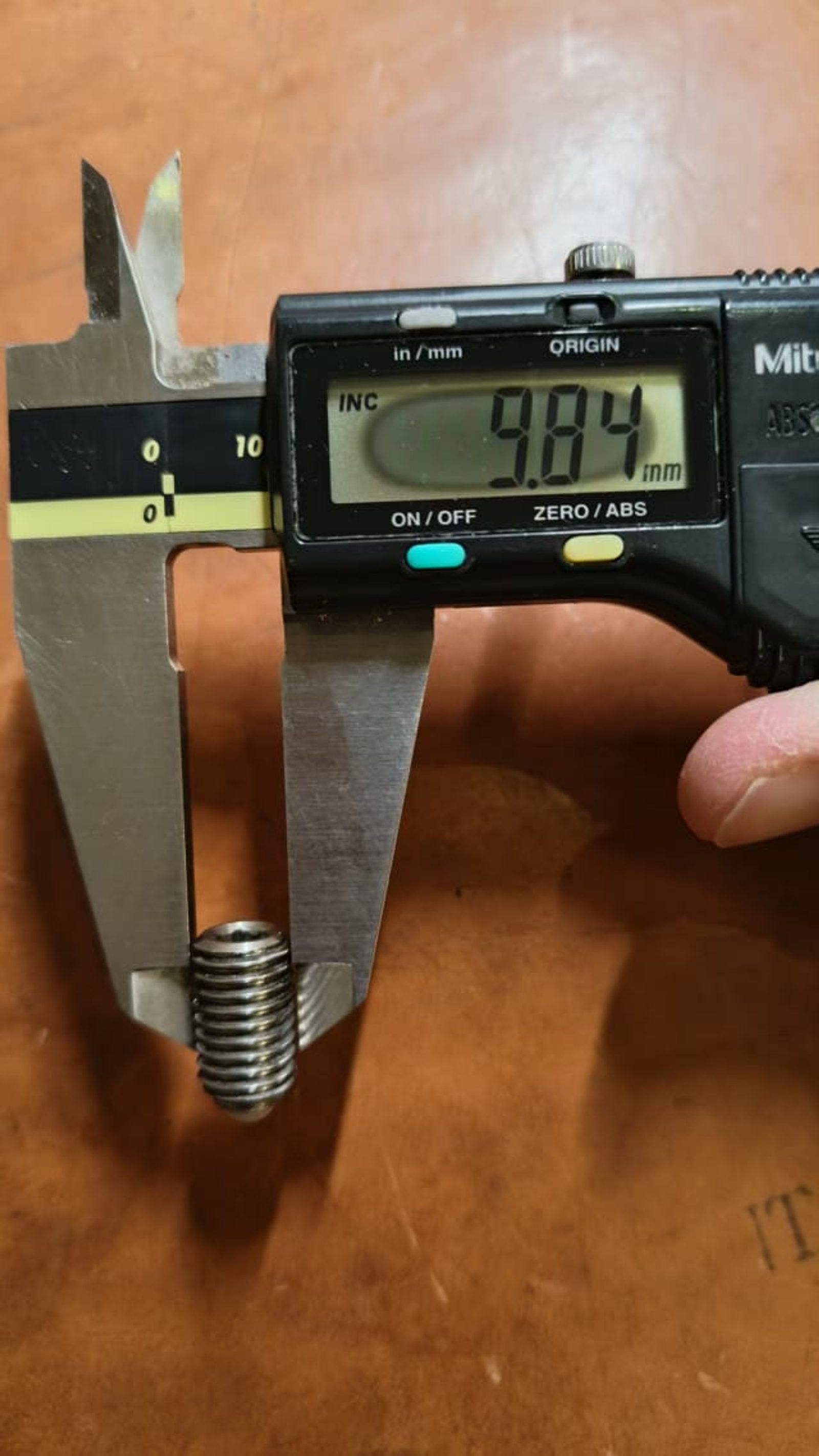

Caliper showing an approximate 9.84 millimetre body diameter for the sample
Indicative threaded-body diameter from the supplied sample.

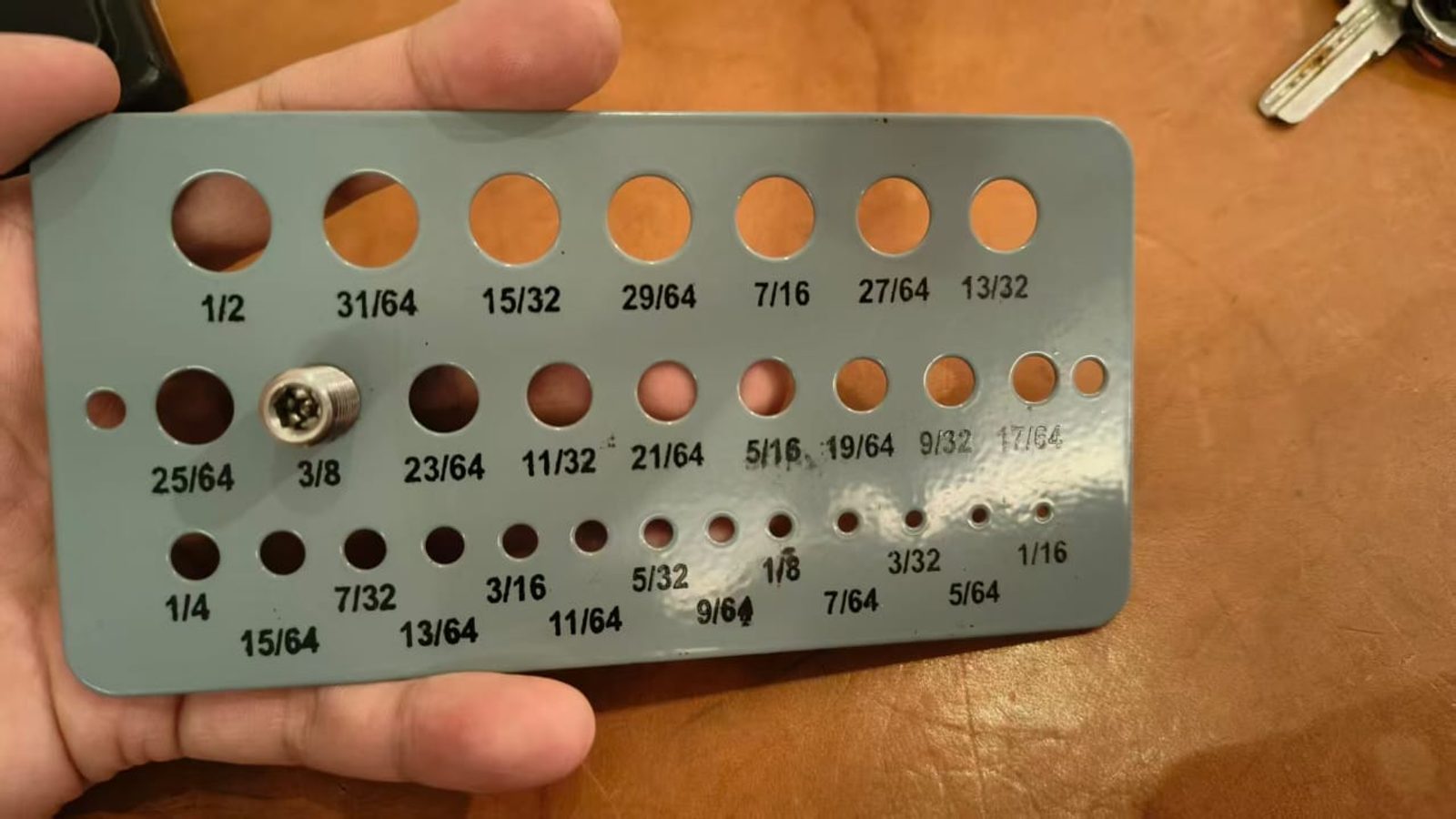

Ball plunger sample shown against an imperial size reference board
A secondary visual size reference supplied with the sample.

Construction details to confirm

Before production or supply, the thread size and pitch, SS304 scope, ball material, spring material, spring load, working travel, installation method, tolerances, quantity and operating environment should be agreed. These details determine whether the component will provide the required contact force and service life.

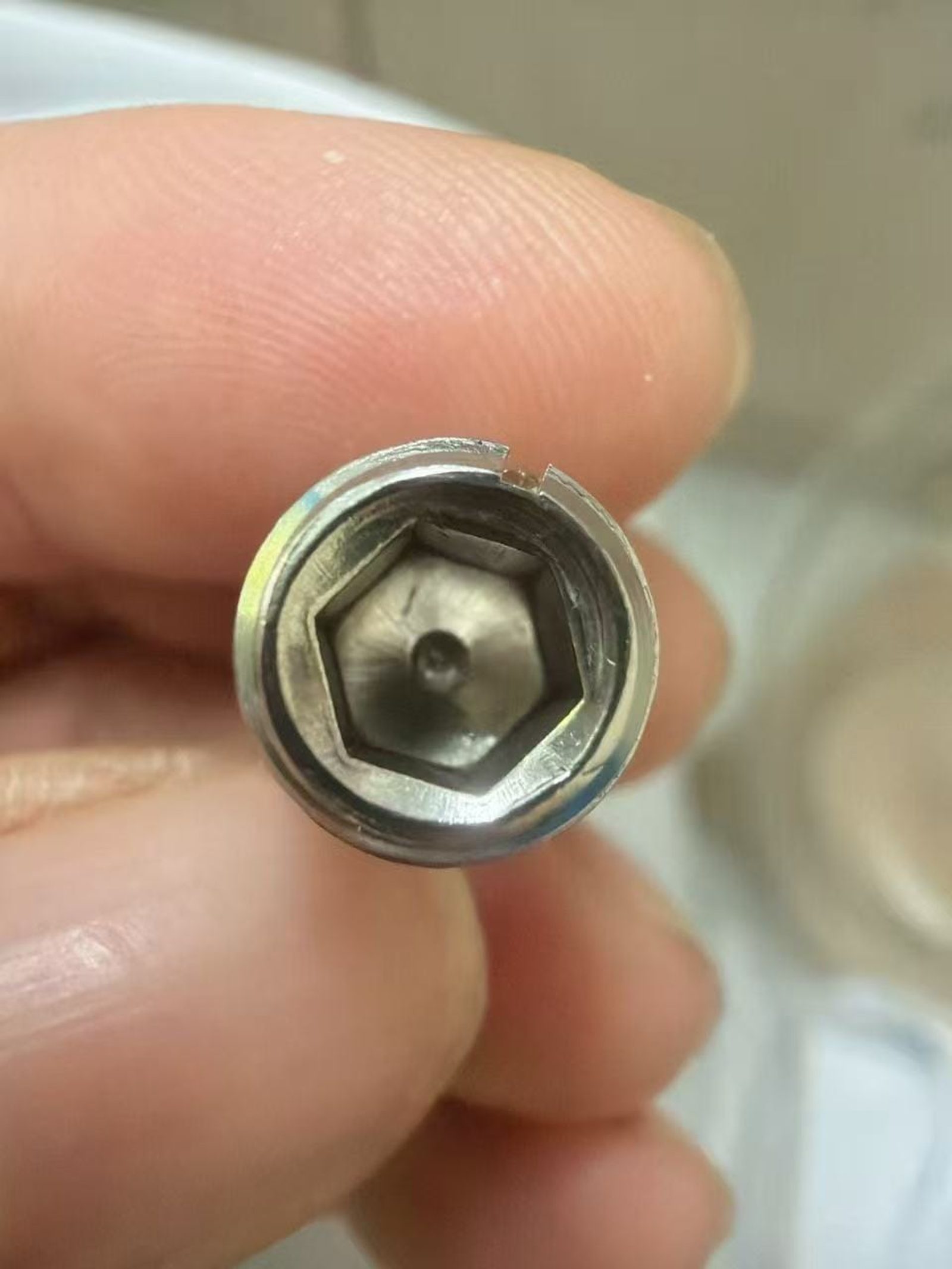

Internal-hex drive inside the custom ball plunger screw
Internal-hex drive viewed from the rear of the sample.
Detail view showing the compact threaded sample from multiple angles.

What to share for a custom quotation

Send the physical sample or a dimensioned drawing together with the application, required quantity, preferred material, operating temperature, exposure conditions and required spring action. AKVT can then review the feasible configuration and confirm the next step.

This page presents a review-stage custom sample. Final specifications, availability and suitability are confirmed during quotation.
